Fixed Chain Jack Systems

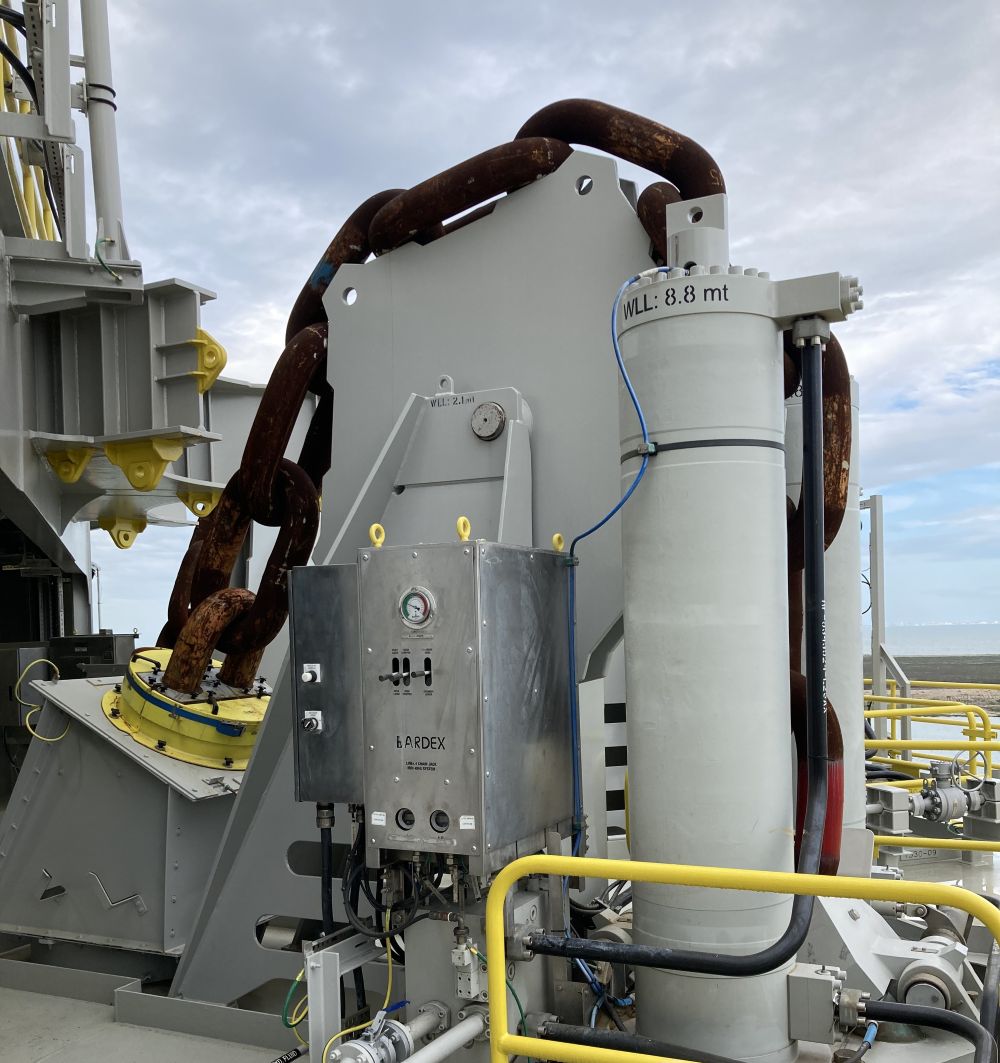

Argos – Delivery Date: 2017/2018

Client: Samsung Heavy Industries
End User: BP

Equipment:

• 12X Linear Chain Jack Assemblies (171mm, 6600 kN Stall Capacity)
• 12X Turndown Sheave Assemblies
• 4X Hydraulic Power Unit Assemblies
• 4X HPU Control Enclosures
• 4X Local Control Enclosures for Chain Jacks
• 1X PLC Enclosure

Water Depth: >1,300m
Service Life: 35 years
Location: Gulf of Mexico
Certifying Authority: American Bureau of Shipping (ABS), USCG, & BSEE (Bureau of Safety and Environmental Enforcement)

Jack-St. Malo – Delivery Date: 2012

Client / End User: Chevron North America Exploration & Production Company

Equipment:

• 16X Linear Chain Jack Assemblies (165mm, 8000 kN Stall Capacity)
• 16X Turndown Sheave Assemblies
• 1X Hydraulic Power Unit Assembly
• 1X HPU Control Enclosure
• 4X Local Control Enclosures for Chain Jacks
• 1X PLC Enclosure

Service Life: 30 years
Location: Gulf of Mexico
Certifying Authority: American Bureau of Shipping (ABS), USCG & Minerals Management Service (MMS)

Kikeh – Delivery Date: 2006

Client: Technip Marine

Equipment:

• 10X Linear Chain Jacks (124mm)
• 10X Turndown Sheaves
• 1X Hydraulic Power Unit
• 4X Local Control Consoles
• 1X PLC Assembly

Water Depth: 1,300m
Service Life: 20 years
Location: Malaysia
Certifying Authority: DNV and ABS

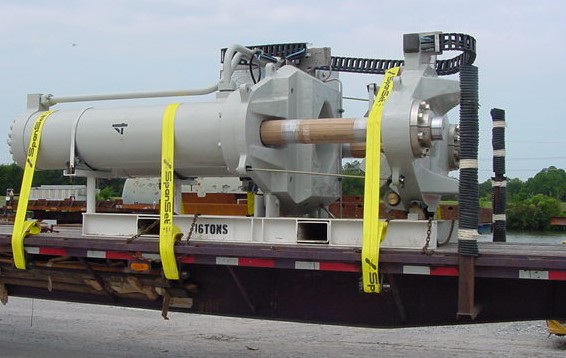

Atlantis – Delivery Date: 2003

Client / End User: BP

Equipment:

• 12X Linear Chain Jacks (171mm)
• 12X Bending Shoes (171mm)
• 1X Hydraulic Power Unit
• 4X Local Control Consoles
• 1X PLC Assembly

Water Depth: >2,000m
Location: Gulf of Mexico
Certifying Authority: ABS

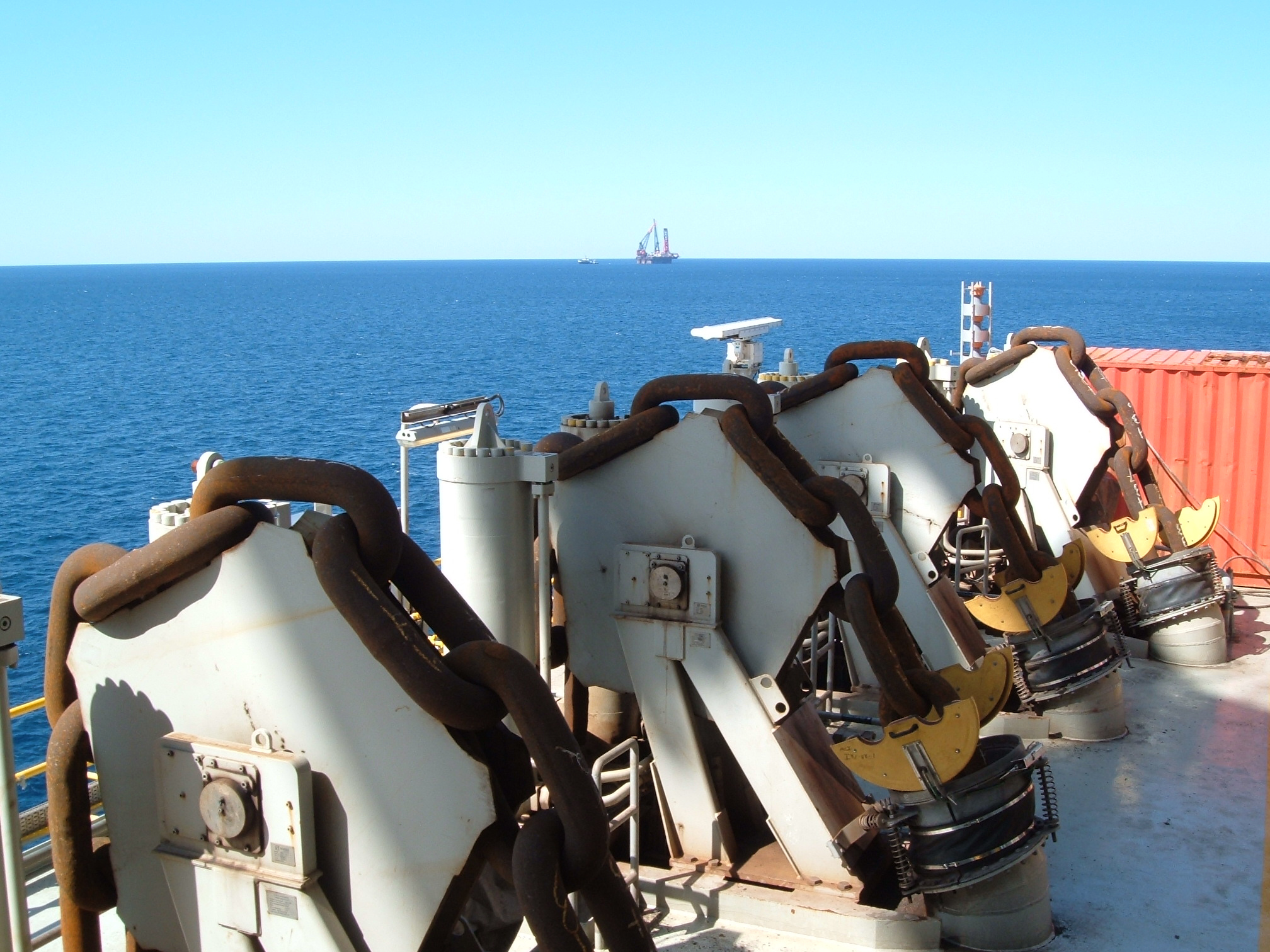

Thunder Horse – Delivery Date: 2002

Client / End User: BP

Equipment:

• 16X Linear Chain Jack Assemblies (150mm)
• 16X Turndown Sheave Assemblies
• 4X Local Control Console Assemblies
• 4X Hydraulic Power Unit Assemblies
• 1X PLC Enclosure Assembly

Water Depth: >1,800m
Location: Gulf of Mexico
Certifying Authority: ABS

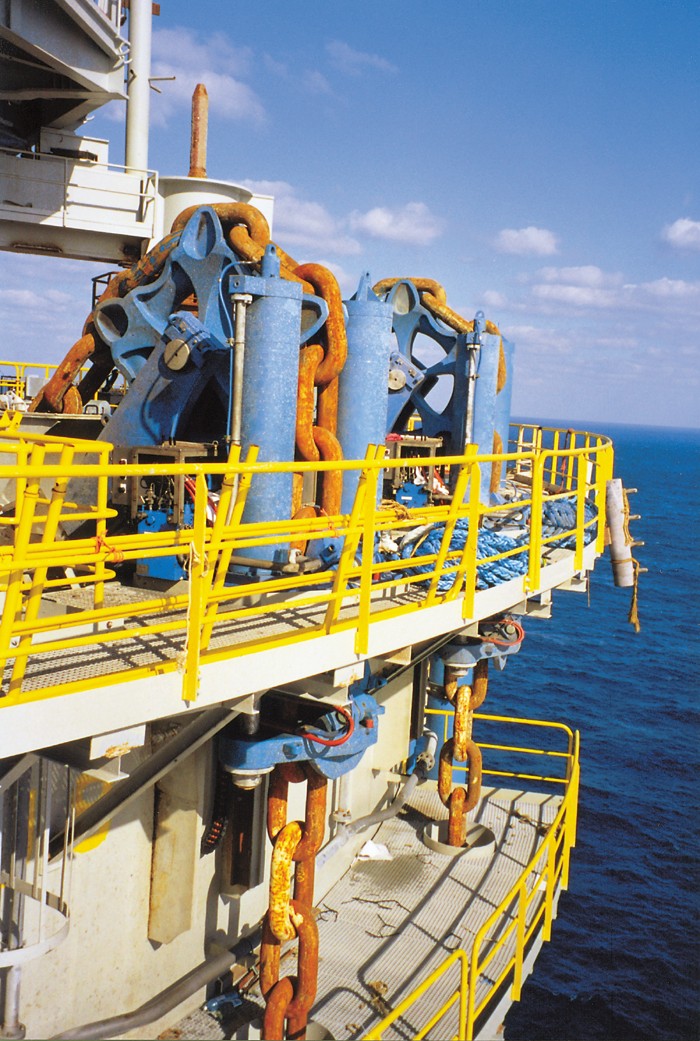

Hoover/Diana – Delivery Date: 2002

Client: Aker Rauma Offshore
Equipment: 12X 522Te Linear Chain Jack Assemblies (151mm)
Water Depth: >1,400m
Location: Gulf of Mexico

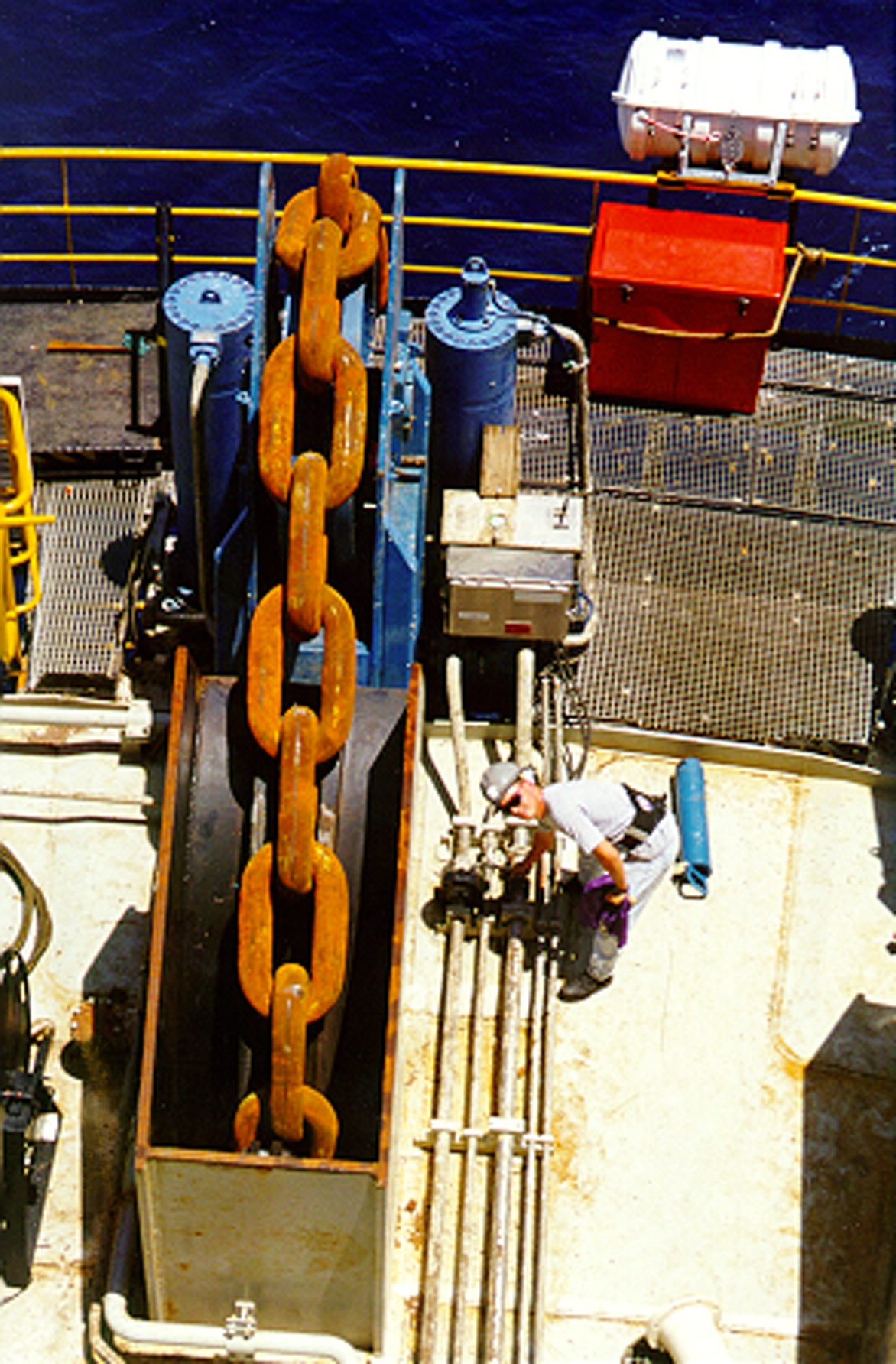

Genesis – Delivery Date: 1998

Client: Aker Rauma Offshore
End User: Chevron

Drilling, production spar dictates difference in mooring setup | Offshore

Genesis offshore platform still setting the bar — Chevron

Equipment:

• 14X 522Te Linear Chain Jack Assemblies (133mm)
• 14X Turndown Sheave Assemblies
• 2X Hydraulic Power Unit Assemblies
• 4X Local Control Panel Assemblies
• 2X Local PLC Enclosures

Water Depth: >700m
Location: Gulf of Mexico
